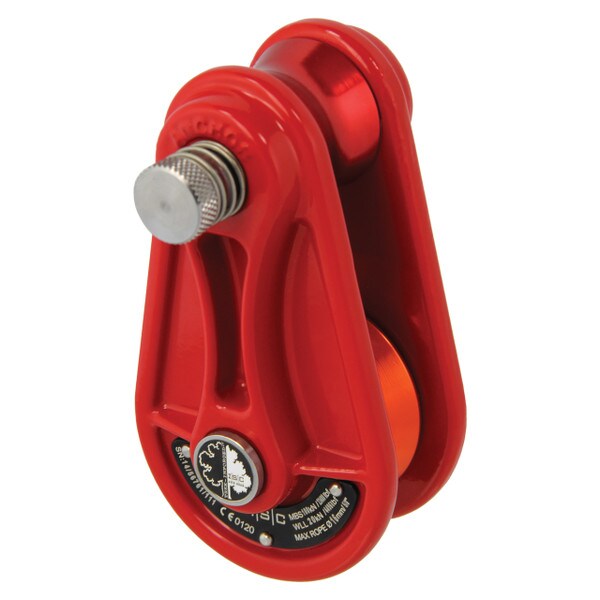

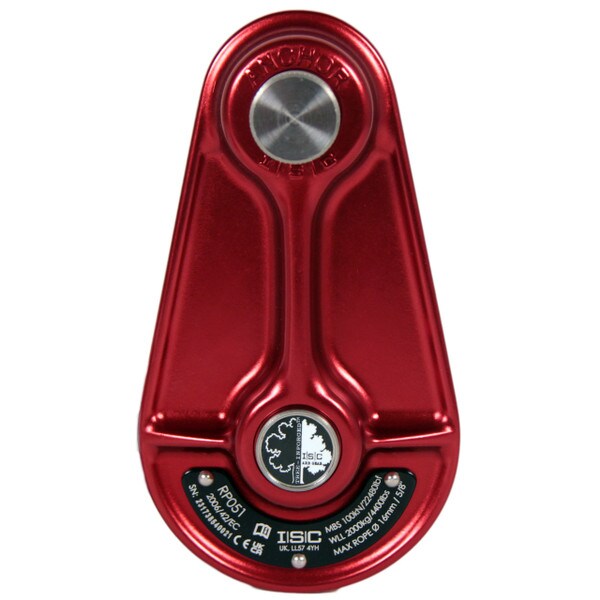

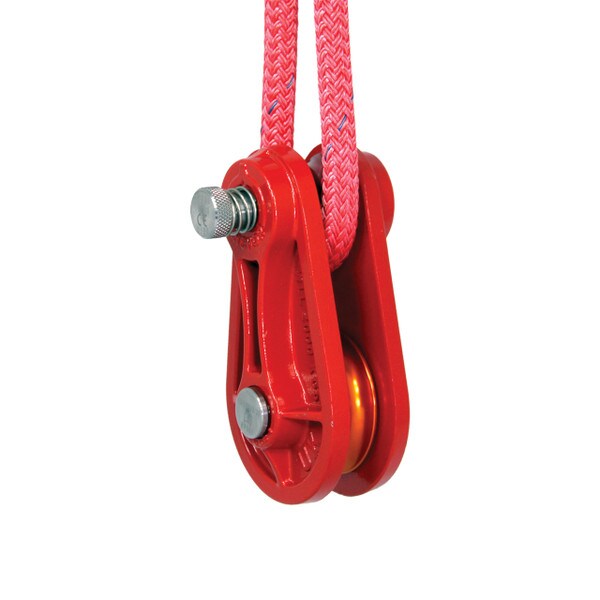

ISC Spring Block - 5/8" Small

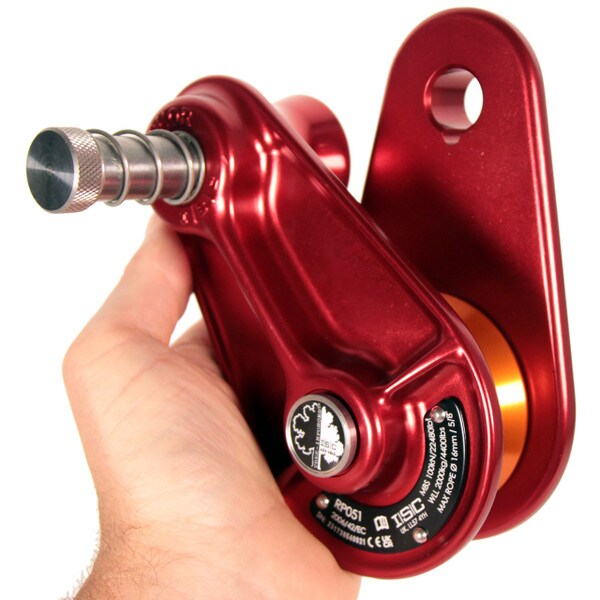

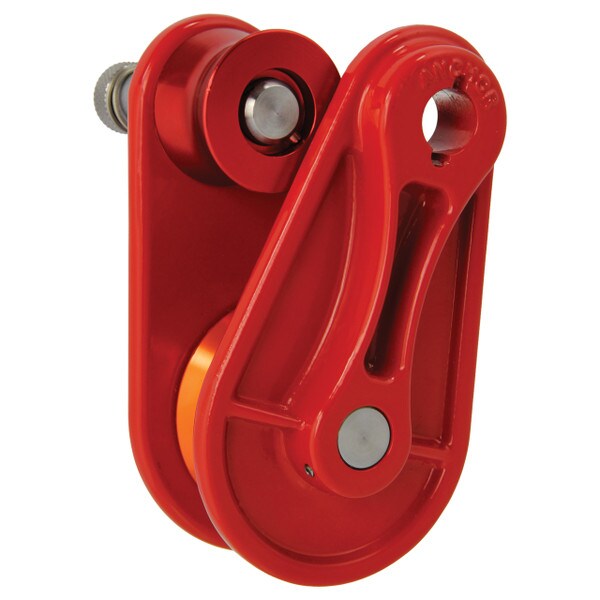

These excellent rigging block are some of our most popular, combining great quality, design, and value. The design is compact with rope-friendly surfaces and large sheaves. Unique upper sheave design is quick to open/close and secures easily, and eliminates the chance of dropping a sheave.
Specifications
- MBS (kN) : 106 kN
- MBS (lb) : 22,480 lb
- MFG WLL : 4,496 lb
- Max Rope : 5/8"
- Max Sling : 3/4"
- Sheave : 2.31"
- Weight : 3 lb 4 oz
- User Manual - PDF
- Data Sheet - PDF
