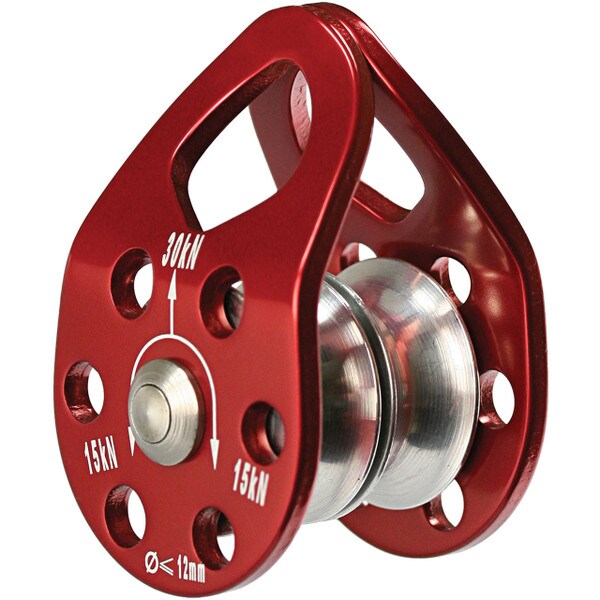

Double Sheave Redirect Pulley
Redirect your doubled climbing line with this double sheave re-direct pulley from ISC. This is the easiest way to redirect your doubled line, with swinging side plates and side by side aluminum sheaves.
With the swing cheek design this makes for a great addition to DdRT redirect setups. Open the pulley slap both legs of rope in hook it up and have a more efficient redirect allowing for that optimum line angle. The angled design of the upper side-plates keeps the ropes captive and running correctly on the sheaves.
This pulley is made from lightweight aluminum and is nice and compact so that it won't take up much room on your belt.
Breaking Strength 6,744 lb (30 kN), 1/2” capacity, 1 3/4” x 3”, weighs 4.4 oz (126 g).
- Compatible with rope diameter: 13mm (1/2")
- (MBS) Minimum Breaking Strength: 30 kN
- (MBS) Minimum Breaking Strength: 6,744 lb
- Wheel material: Aluminium
- Finish: Anodised
- Weight (grams): 124
- Weight (ounces): 4
- CE EN 12278
Ratings & Reviews
A Must Have
by Vance -
Must have for MRS redirects
Goes with me every climb
by John -
Small, light, and good to have for when redirection is needed.
