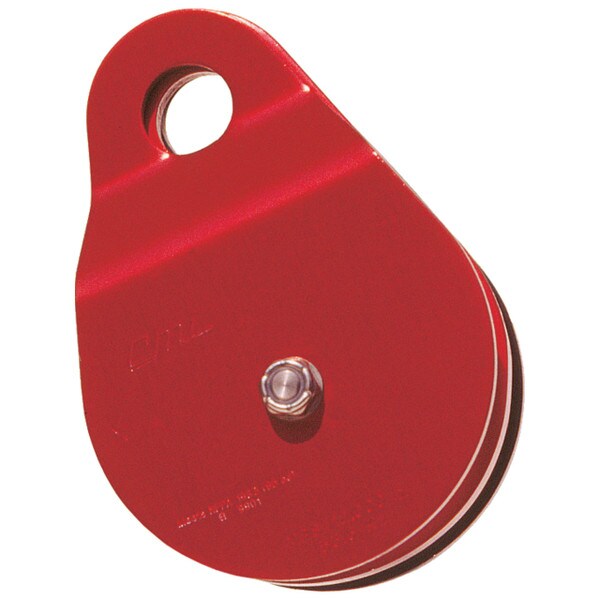

Uplift Pulley
Details
Red/Black anodized aluminum sideplates, two 3" aluminum sheaves, bushing, and stainless steel axle.
*Exceeds tests for national fire protection association standard on fire service life safety rope and system components NFPA 1983-2006 edition. *Not Certified*
- Part# UP102NFPA
- MBS: 12,000 lbs
- Sheave Diameter: 3.0� (2)
- Max Rope Diameter: 1/2�
- Weight: 1 lb 9 oz
- Body Material: Aluminum
- Sheave Mechanics: Oilite Bronze Bushing
- Sheave Material: Aluminum
- Width: 3.75�
- Height: 5.75�
