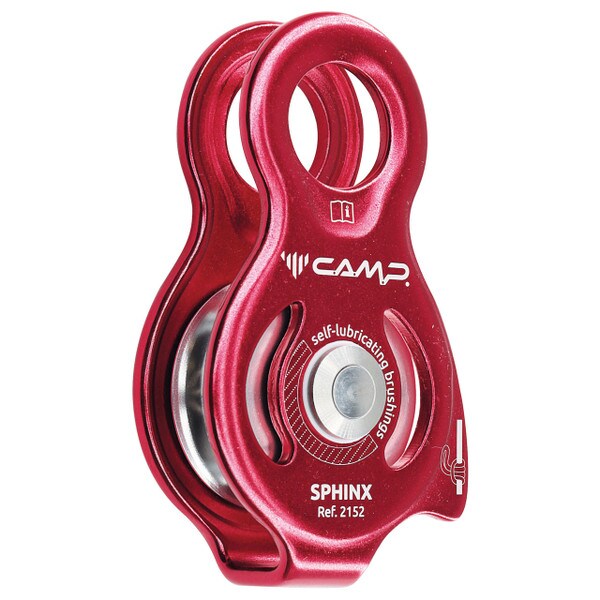

Sphinx Pulley

The Sphinx is a compact fixed pulley capable of filling many functions in hauling, mechanical advantage, and more on ropes up to 13mm (1/2"). The chief attachment point is large enough to fully rotated attached carabiners. The Sphinx has a small ‘horn’ on one side to allow prusik-minding. Self-lubricated bushings for light applications at low speed. Efficiency: 80%. Aluminum alloy body and wheel, stainless steel axle.

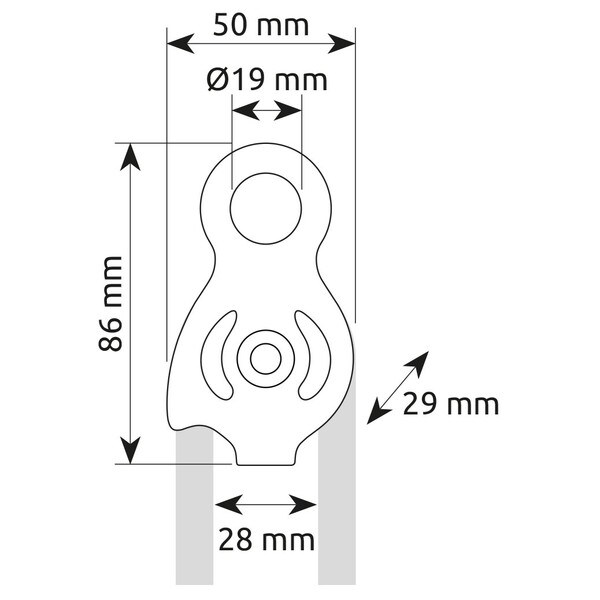

Specifications

• Inner sheave diameter: 28 mm
• Max rope diameter: 13 mm (1/2")
• Working load Max: 2 kN x 2 = 4 kN / 450 LBF x 2 = 900 LBF
• Breaking load: 24 kN / 5396 LBF
• Bushing material: Brass
• Sheave material: Aluminum alloy
• Weight: 95 g / 3.4 oz
• CE Logo: Yes
• EAC Logo: Yes
• Standard: EN 12278
