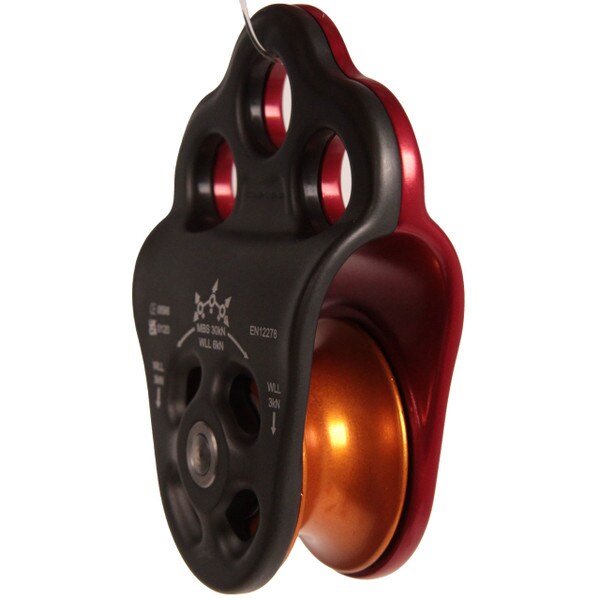

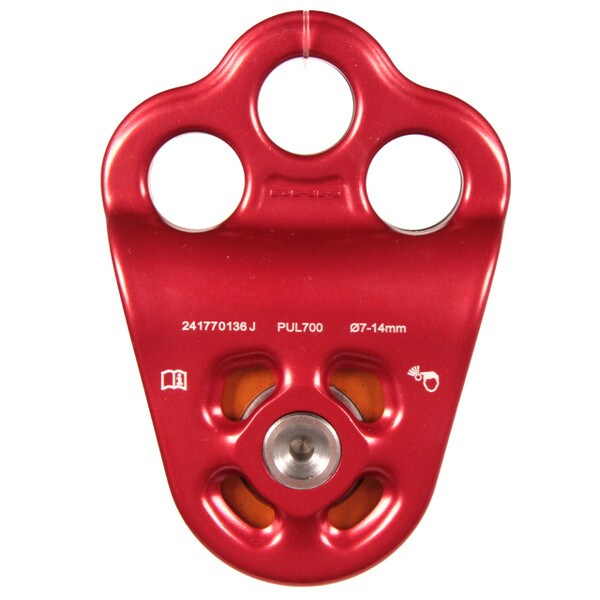

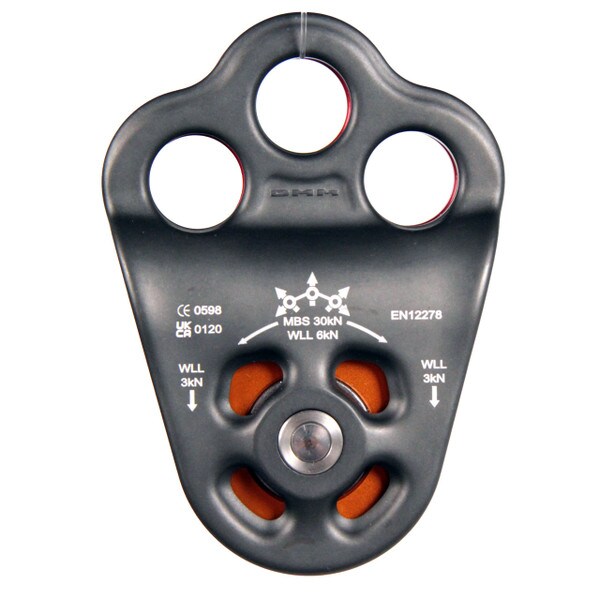

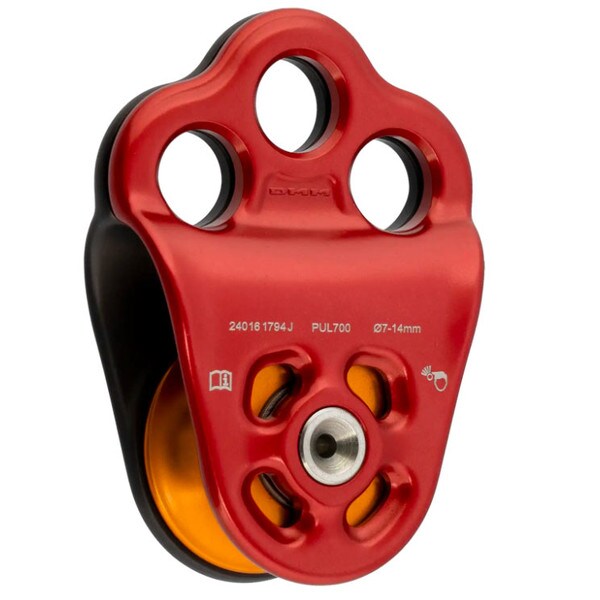

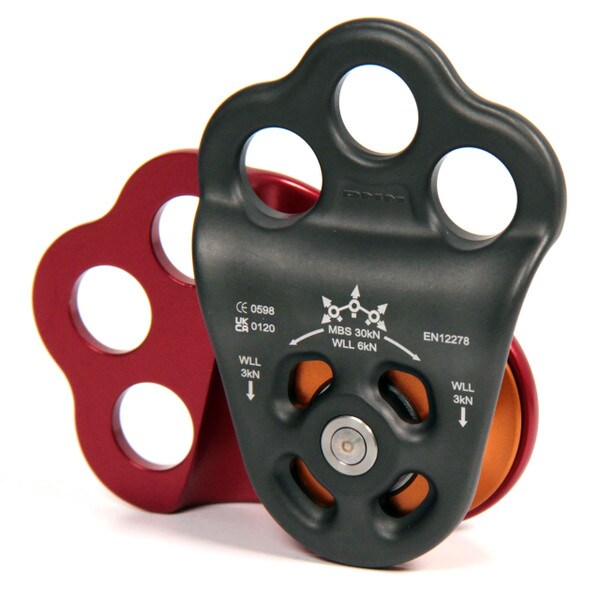

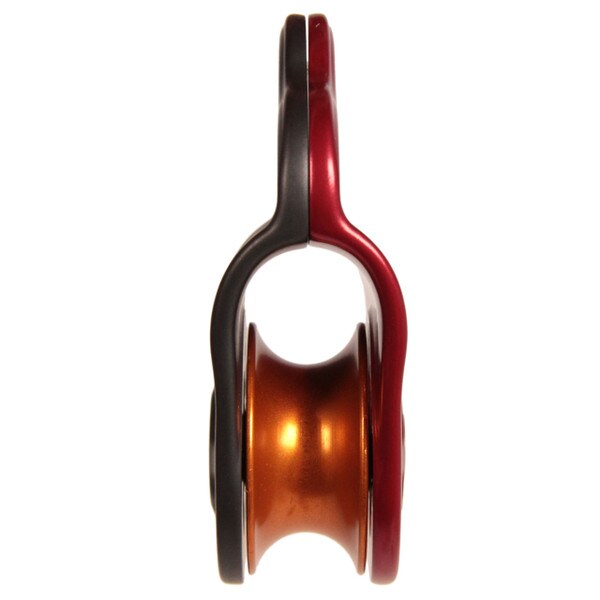

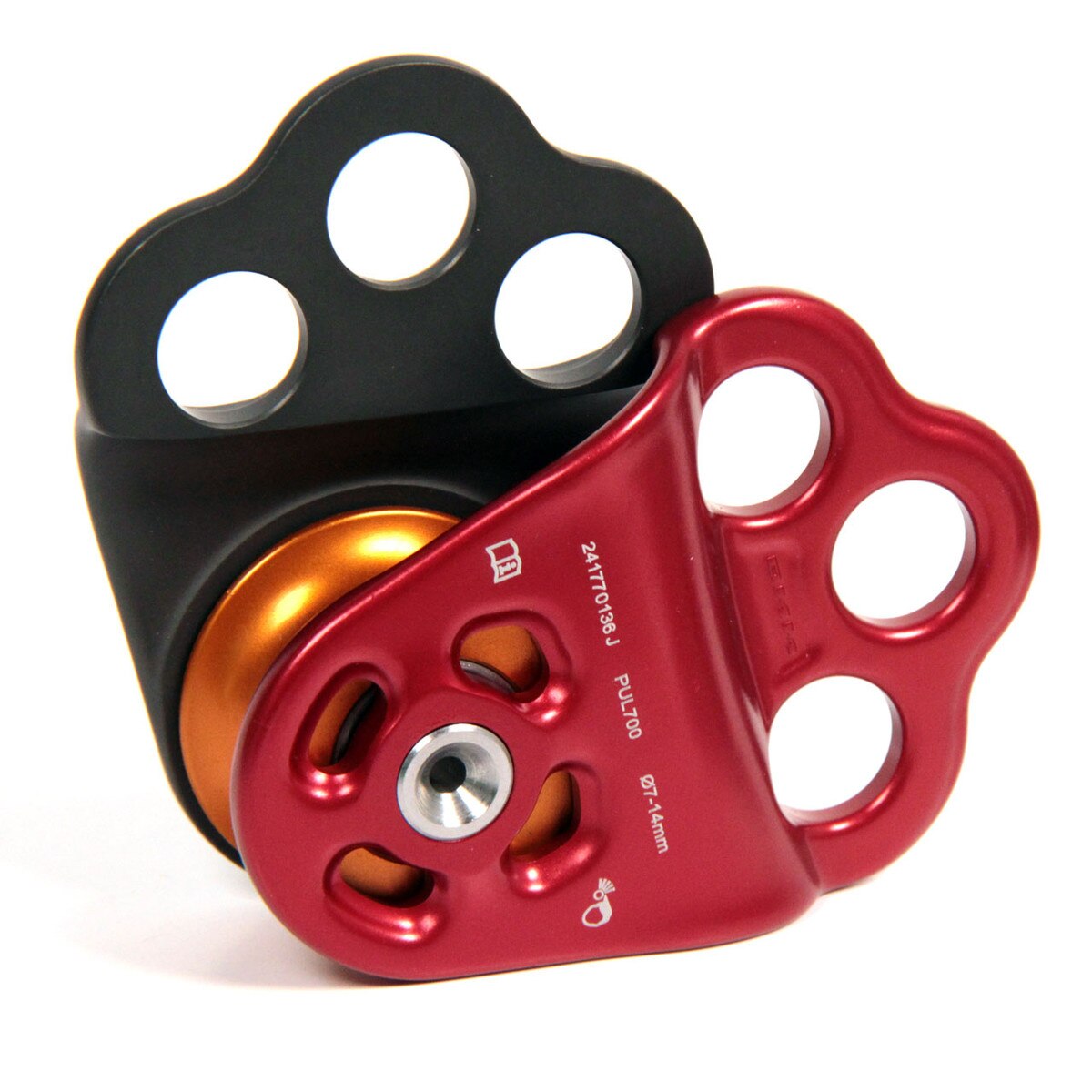

Triple Attachment Pulley 2 (Hitch Climber)

The DMM Triple Attachment Pulley 2 is a revision of the classic Hitch Climber Pulley. Now with sealed bearings for more efficiency, and a better shape to the side plate for easier rope feeding.

The Hitch Climber is the single most popular pulley for organizing a hitch system, thanks to the 3 holes which streamline the system, and open up additional tie-in options for advanced uses.

The Hitch Climber pulley has many uses! It can be used for slack tending, generating mechanical advantage for rescue and gear hauling, not to mention improving work positioning systems. See the Hitch Climber's Guide PDF for more ideas. Smooth contour and rounded edges are easy on rope and carabiners alike.

Specifications

• 3 carabiner holes
• Hot forged side plates with rope-friendly surfaces
• Maximum Rope Diameter : 14mm (9/16")
• MBS 30 kN (6,750 lb)
• WLL 6 kN (1,349 lb)
• Dimensions: 94 x 68 x 33mm (3.70 x 2.68 x 1.30 inches)
• Weighs 150g (5.3 oz)
• Made in Wales

Features

• Bushings have been replaced with sealed bearings, offering improved efficiency
• Updated straight sides tend the hitch better
• Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
• Rigging plate helps organise single or multiple attachments
• Fairlead flares help maintain high working efficiency
• Compatible with most carabiner shapes and many textile connecting elements including rope and webbing
• Size of attachment holes reduce probability of unwanted rotation of locking carabiners
• Direct connection to textile components at the round edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
• Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as at the bottom of the pulley
• Tamperproof construction
