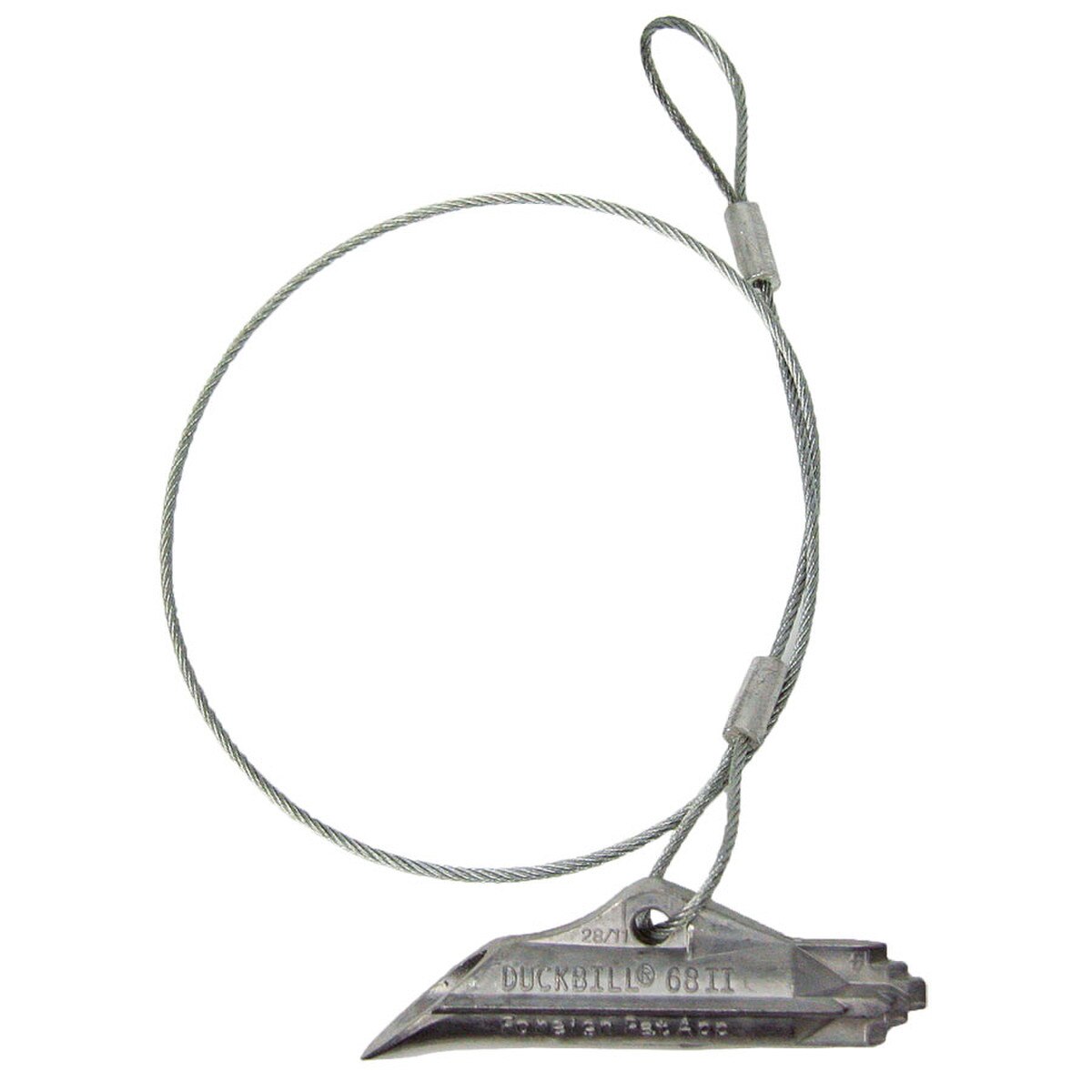

Duckbill Anchor #68 - 1100 lb
Model #68 (RIG386)
1,100 lb. recommended working load in normal soils (wire rope capacity 1,200 lb). Best for medium holding capacities cabled with 1/8' cable. For more aggressive soil, it can be used with 3/16' cable. Standard installation depth is 30'. Attached wire rope is 2.5' long.
Model #68 uses the 3' Drive Rod (RIG392).
- 1/8' x 30' galvanized aircraft cable attached
- 1100lb working load limit (in normal soil conditions)
Save time, labor, and hassle by installing the environmentally-sensitive Duckbill Earth Anchors - no holes, digging, or concrete required! Duckbill Earth Anchors work like toggle bolts and are easy to drive into the ground. An upward pull of the attached wire rope rotates the anchor into a perpendicular 'locked' position for superior holding capacities.
The Duckbill is made from aluminum alloys, which makes it a strong, lightweight, and affordable solution to your anchoring needs.
