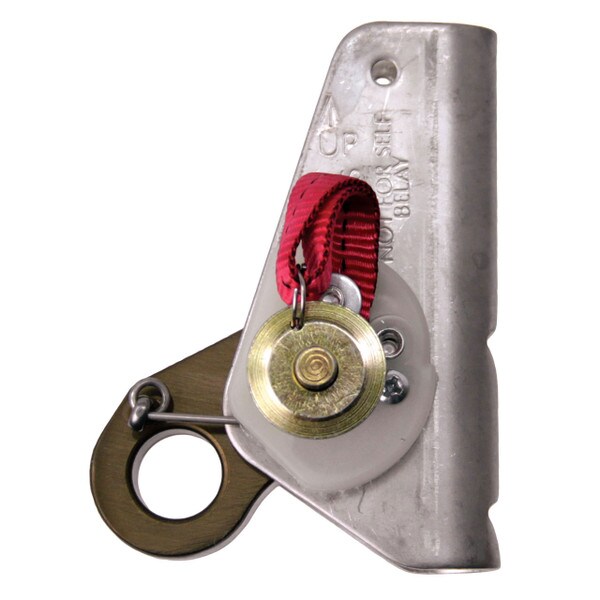

Gibbs Quick Release Ascender 3S (Spring Cleaning)
Details
The Gibbs #3S Ascender is intended for litter raising and load hauling, where extra strength and durability is required. Not for self belay by solo climbers.
Features & Benefits
- 11mm to 13mm rope capacity
- Spring-loaded or free-running cam
- Stainless steel shell
- 5400 lb breaking strength
Assembly: Depress button on pin and pull pin out until cam swings free. Place Ascender on rope and align holes in cam and shell. Depress button and insert pin.
Convert to Free Running Mode: Remove the small screw in the black spring cover. The spring will rotate freely. Do not remove the screw in the cam. Do not try to remove the spring.
Reconvert to Spring Loading: Hold cam down and re-insert screw in spring cover.
