Spin L1D

(0)No Reviews yet
$147.96
SKU: PUL163

Specifications

BRANDPetzl
MAX ROPE CAPACITY13mm (1/2"+)
BREAKING STRENGTH36 kN (8,092 lb)
CERTIFICATIONS & STANDARDSCE, EN 12278, NFPA 1983 G

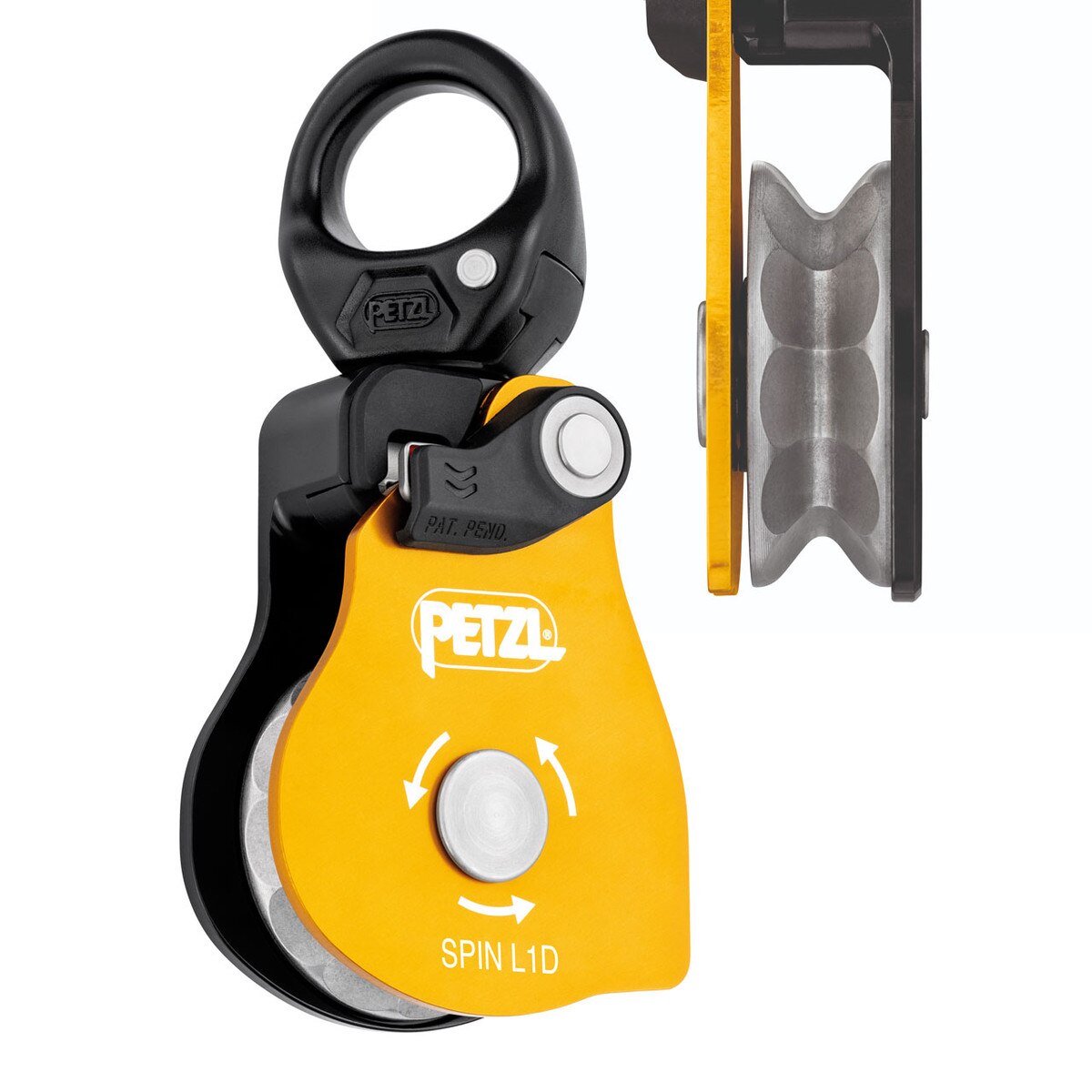

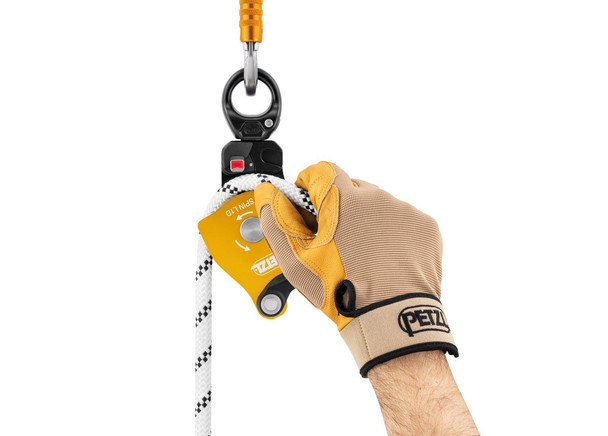

The SPIN L1D pulley is to be used in conjunction with a descender for maximum simplicity in setting up a deviation for a heavy load deviation, or haul systems for work at height or rescue. Its faceted sheave only rotates in one direction, providing excellent efficiency when hauling and adding friction zones for the rope for additional braking when lowering. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes or slings.

Features & Benefits

  • Triple-action opening of the moving side plate is quick and easy, even with gloves
  • Rrope can be installed with the device connected to the anchor
  • Red mark provides a visual warning when the moving side plate is unlocked
  • Special side plate design protects the rope path and allows the use of a Prusik friction hitch in a progress-capture system
  • Swivel allows pulley to be oriented under load
  • Accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Specifications

  • Maximum working load: 3 x 2 = 6kN
  • Breaking strength: 36kN
  • Material(s): aluminum, stainless steel, nylon
  • Min. rope diameter: 8mm
  • Max. rope diameter: 13mm
  • Sheave diameter: 40mm
  • Efficiency: 93%
  • Weight: 425g
  • CE*, NFPA 1983 Pulley General Use * CE based on the applicable requirements of the EN 12278 standard
