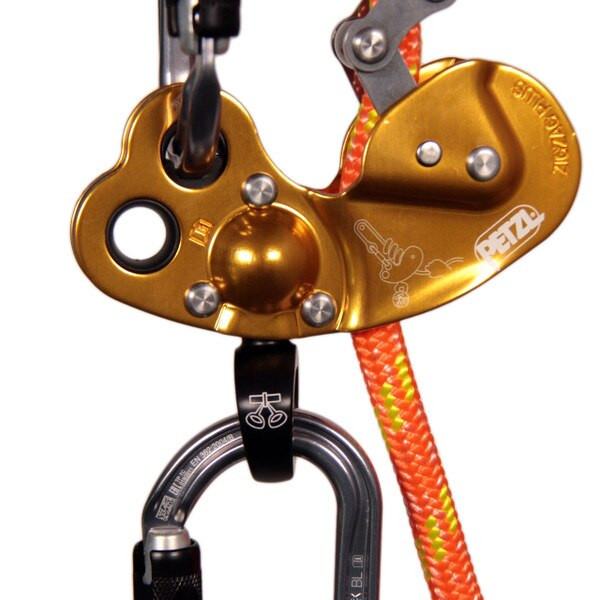

Zigzag Plus

(0)No Reviews yet



The Petzl ZIGZAG Plus adds a swivel connection for optimized positioning in Moving Rope Systems. Combines the functionality of prusik, pulley, and swivel into a single positioning device with improved consistency of friction, precision, and control.

For ropes from 11.5 - 13mm.


  • For ropes from 11.5mm to 13mm
  • Material(s): aluminum, steel, nylon
  • Weight: 425 g
  • Rope compatibility: EN 1891 type A low stretch kernmantle ropes
  • Working load limit: 140 kg
  • Certification(s): CE

Features & Benefits

  • Intuitive to use:
    - technique identical to classic Prusik pulley system
    - the device locks automatically on the rope once the friction chain extends
  • For efficient movement within the tree:
    - rope feed is smooth and precise thanks to the release lever, allowing the user great control over his/her movements. Adjusting the pressure on this lever controls the speed of movement
    - easy to take up slack, thanks to the pulley mounted on sealed ball bearings and the separated and curved side plates
    - lower attachment hole is fixed to ensure alignment of the device with the axis of the worker and optimize grip
  • Versatile:
    - for use on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent
    - upper attachment hole for the rope end when using a doubled rope or for the CHICANE auxiliary braking device when using a single rope. It has a flexible positioning ring that helps keep the connector oriented along its major axis
    - auxiliary attachment hole for adding a ZILLON lanyard or connecting a second system
  • Durability:
    - steel construction for improved durability
    - separated and curved side plates for better wear resistance
  • Rope compatibility: 11.5 to 13 mm diameter
  • Zigzag Plus allows the user to work in compliance with the ANSI Z133 standard
