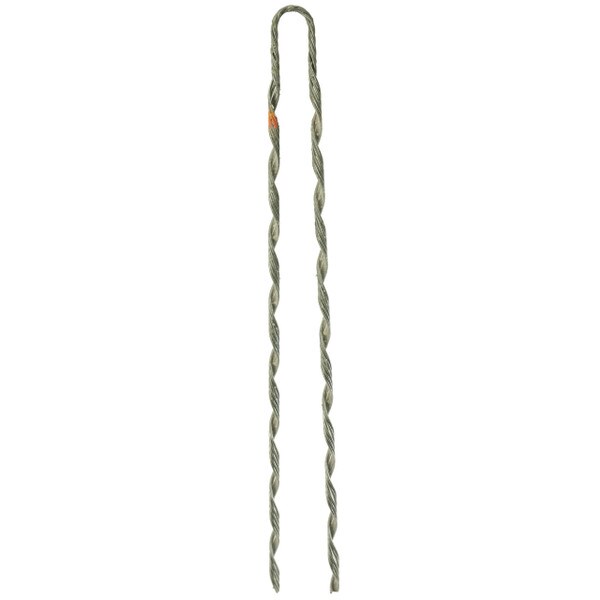

Tree-Grip Dead End - 1/4"
Tree-grip dead-end for 1/4" cable installations. Color-coded yellow.
TREE-GRIP Dead-ends are designed to eliminate the costly labor and time consuming hassle of cable splicing. The factory-formed left hand lay helical legs of the TREE-GRIP Dead-ends wrap quickly around left hand lay extra high strength (EHS) galvanized strands, eliminating the process of splicing common grade galvanized strand. The end result is a labor saving application accomplishable in under 60 seconds.
Made from electrogalvanized steel.
Features
- Cost Savings: Lets you use EHS galvanized strand while maintaining strength comparable to larger sizes of common grade strand, reducing costs.
- Strength: TREE-GRIP Dead-ends develop 100% of the published rated breaking strength (RBS) of EHS strands. They are also compatible with common grade, Siemens-Martin, high strength, and utilities grade strands.
- Thimble-Loop Design: Unique design of the dead-end for the tree care industry prevents thimbles from falling out during installation.
- Consistent Appearance: Prefabricated design for a professional look on every cabling job.
- Secure Grip: Helical legs have an inside diameter about 20% smaller than the strand’s outside diameter, providing a strong, secure grip and consistent radial force.
Available Models and Ratings:
- RIG325 (PLP Item # TG-1251) : 1/4" EHS strand, 6,650 lbs RBS
- RIG326 (PLP Item # TG-1252) : 5/16" EHS strand, 11,200 lbs RBS
- RIG327 (PL Item # TG-1253) : 3/8" EHS strand, 15,400 lbs RBS
These arborist Dead-ends are used around the world in millions of installations by industrial and government professionals. Designed for ease of use and extensively lab and field-tested. Preformed products are known for unmatched excellence.
- Preformed Line Product Tree Grip Info - PDF
- Preformed Line Products Tree Grip Installation Instructions - PDF
TREE-GRIP™ Dead-end with Thimbles
Important: Be sure to read and completely understand this procedure before applying the product. Select the proper size PREFORMED™ product before application.
- Do not reduce or alter the length of TREE-GRIP Dead-ends.
- Use extra caution when larger trees or heavy limbs may be subject to dynamic activity due to high wind loadings. Contact your local PLP representative for recommendations.
©2017 Preformed Line Products. All rights reserved.
General
Step 1
Apply TREE-GRIP Dead-ends (Cat #'s TG-1250, TG-1251, TG-1252, TG-1253) to extra high strength (EHS) or Common Grade left hand lay (LHL) galvanized steel strand sizes 3/16", 1/4", 5/16", and 3/8" respectively.
When cabling between two boughs or branches, follow normal installation procedures. Match the correct strand size with the corresponding TREE-GRIP Dead-end, ensuring the strand is left hand lay. Tape the area of the strand to be cut to prevent wire separation during cutting.
Note: The PREFORMED Safety Guy Wire Dispenser (Cat. No. SGD-0700) is recommended when carrying and working with EHS strand.
Components
- Long Leg
- Heavy Duty Thimble
- Heavy Duty Thimble with Locking Tab
- Crossover Mark / Color Mark
- Specifically Designed Cabled-Loop Thimble
- Short Leg
- Pitch Length
Warnings
| TREE-GRIP Dead-end Catalog Number | Thimble Size | Heavy Duty Thimble | Heavy Duty Thimble with Locking Tab |
|---|---|---|---|
| TG-1250 | 3/16" | GST-9036 | GTC-9039 |
| TG-1251 | 1/4" | GST-9036 | GTC-9039 |
| TG-1252 | 5/16" | GST-9037 | GTC-9040 |
| TG-1253 | 3/8" | GST-9038 | GTC-9041 |
Step 2
Lay the taped end of the cable in the TREE-GRIP Dead-end’s short leg, slightly above the crossover mark.
Step 3
Wrap the short leg around the EHS strand within two pitch lengths of completion. Pull the legs away from the strand during wrapping to ease application.
Step 4
Insert the correct thimble size into the TREE-GRIP Dead-end’s cabled-loop. Cross the longer leg over the completed shorter leg at the crossover mark to secure the thimble.
Step 5
Continue wrapping the long leg around the strand within two pitch lengths of completion.
Note: To ease wrapping, split each leg into two subsets and wrap each subset individually to completion.
PLP Tip: Ensure all leg ends are properly snapped onto the strand. Improper application may cause the rods to unwind.
Step 6
Completed Application: If less tension is desired within 90 days of initial installation, unwrap both legs within two pitch lengths of the crossover mark. Allow the strand to slide until the desired tension is reached, then rewrap to completion.
Installation Guidelines
- Handle TREE-GRIP Dead-ends carefully to prevent distortion or damage.
- Store in cartons under cover, preferably shelf storage, until use.
- May be removed and reapplied up to three times during initial construction adjustments.
- Should not be reused after original service life installation.
- Use only with strand sizes specified (see table above).
- Do not use as come-alongs, pulling-in grips, or similar tools.
- Apply only to designated thimble sizes, not directly over hooks, bolts, or nuts without thimbles.
- Use only with hardware held in a fixed position (no rotation).
- Ensure strand and TREE-GRIP lay direction is left hand lay.
- Do not use as false dead-ends.
- If in doubt about fittings or applications, contact your local PLP representative.
Safety Considerations
- This procedure does not supersede company construction or safety standards.
- Failure to follow procedures may result in personal injury or death.
- Product may be removed and reinstalled during initial installation if in good condition.
- After extended service life, do not reuse the product.
- Do not modify the product.
- Use only by trained technicians familiar with its application.
- Exercise extra care when working near energized lines to avoid electrical contact.
- Select the proper size PREFORMED product before application.
- Store and handle PREFORMED products carefully to ensure proper performance.
