Am'D Pin Lock Carabiner

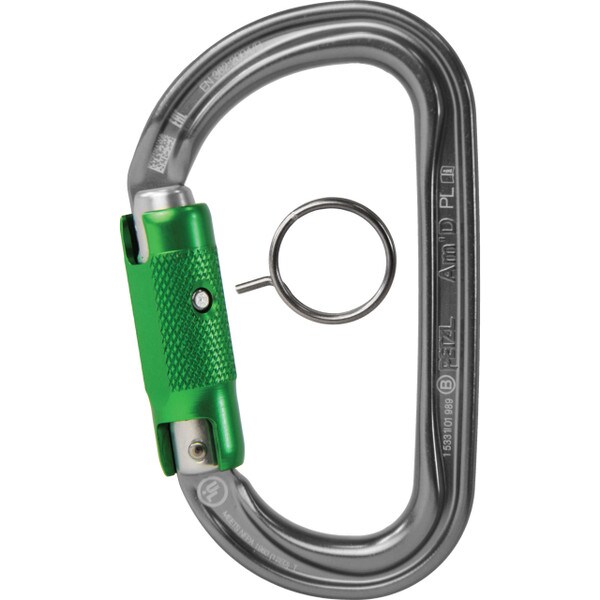

This unique Pin-Lock gate closes and locks like a double-locking gate, but a pin (included) is needed to depress a button so the gate can open. This makes the Pin-Lock Am'D ideal for adventure parks, climbing with kids, or other situations where the user should not open the gate. The popular Petzl Am'D carabiner has been redesigned with h-frame bar stock for a better strength to weight ratio and improved gate action and clearance. Rated at 6,070 lb. (27 kN).

Specifications

• Manufacturer: Petzl
• Breaking strength: 27 kN (6,070 lb)
• Material: aluminum
• Dimensions: 4.25 x 2.5"
• Gate opening: 25mm (1")
• Weighs: 75 g (2.6 oz)
• 3-year guarantee

Features & Benefits

• Carabiner designed for use with groups:
  - to fasten a harness (in combination with the CAPTIV positioning bar)
  - to connect a trolley to a continuous lifeline

• Secures the connection of the user:
  - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
  - PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner

• Easy to use by the operator:
  - Keylock system to avoid any involuntary snagging of the carabiner

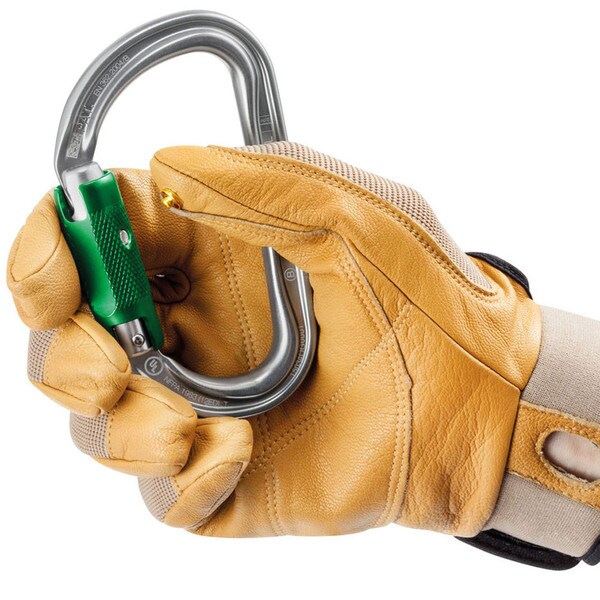

  - two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
  - H-profile protects markings from abrasion and ensures improved strength-to-weight ratio

• Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only

Certifications & Standards

• CE EN 362
• CE EN 12275
