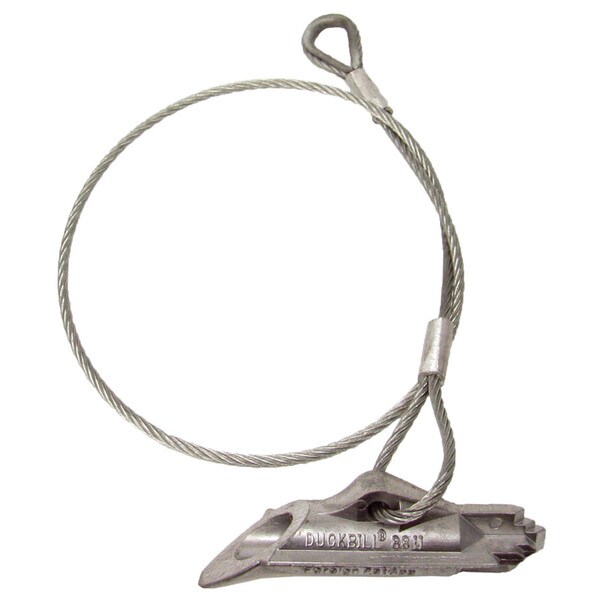

Duckbill Anchor #88 - 3000 lb

(0)No Reviews yet



Model #88 (RIG385)

3,000 lb. recommended working load in normal soils (wire rope capacity 6,100 lb). The most popular Duckbill Anchor, this model is generally used with 1/4" cable. For more aggressive soil, it can be used with 5/16" cable. Standard installation depth is 42'. Attached wire rope is 3.5' long.

Model #88 uses the 4' Drive Rod (RIG393).

  • 3/16' x 42' galvanized aircraft cable attached
  • 3000lb working load limit (in normal soil conditions)

Save time, labor, and hassle by installing the environmentally-sensitive Duckbill Earth Anchors - no holes, digging, or concrete required! Duckbill Earth Anchors work like toggle bolts and are easy to drive into the ground. An upward pull of the attached wire rope rotates the anchor into a perpendicular 'locked' position for superior holding capacities.

The Duckbill is made from aluminum alloys, which makes it a strong, lightweight, and affordable solution to your anchoring needs.
