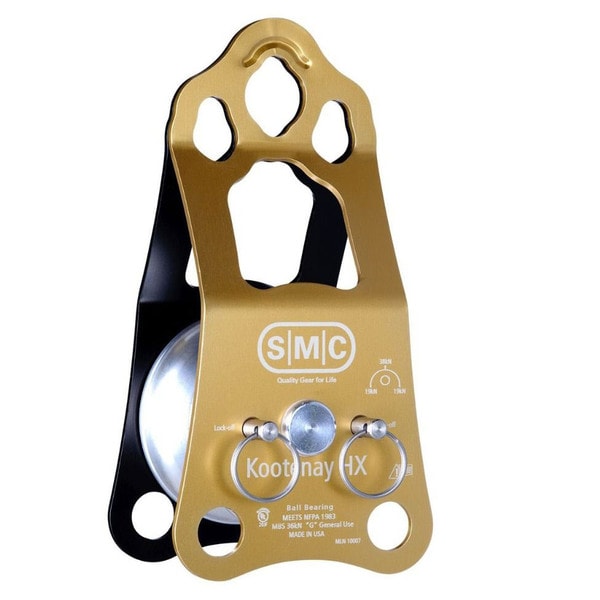

Kootenay HX

Lightest Knot Passing Pulley on the market that is UL-Certified to NFPA General Use. The primary carabiner hole accepts numerous rescue carabiners. Secondary carabiner holes are provided for use with tax or belay lines. Two quick-release pins may be used to "lock off" the sheave when a high-strength tie-off is required. Adding to its versatility, the Kootenay HX may also serve as an edge roller.

Features & Benefits

• NFPA 1983 incorporated in the 2022 Edition of NFPA 2500. "G" General Use.
• Features a high efficiency ball bearing.
• Placement of sheave and overall volume of pulley help to handle larger knots.
• Secondary carabiner holes are provided for use with tag or belay lines.
• Includes two pins that are used to "lock off" the sheave for a high strength tie-off.
• Matched double-bend side plates help to eliminate compression under load and the resulting friction on rope or sheave.
• Wide base design and volume help to provide stability when used standing as an Edge Roller.
• Made in the USA.

Specifications

• Model #: NFPA125500
• Type: Single
• Axle: Aluminum
• Bearing: Ball Bearing
• Material: Aluminum
• Dimensions: 8.67" x 4.34"
• Weight: 26.4 oz (750g)
• Sheave: 3.455" aluminum
• 3 Sigma MBS: 38kN (8,542 lbf)
• NFPA 1983 incorporated in the 2022 Edition of NFPA 2500.
• Made In USA
