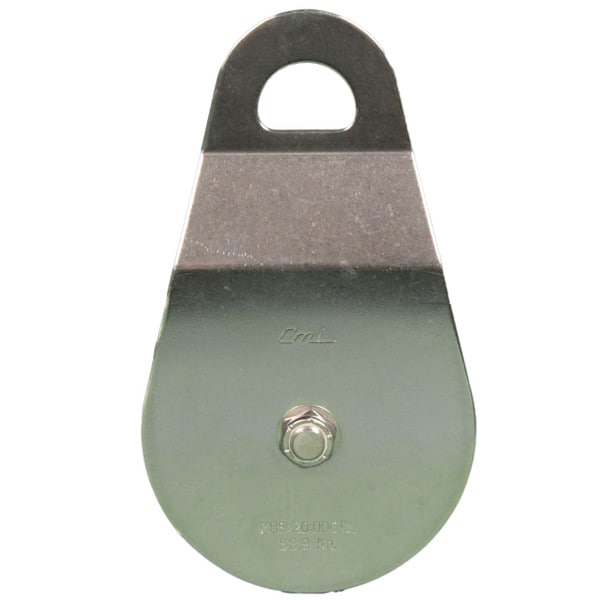

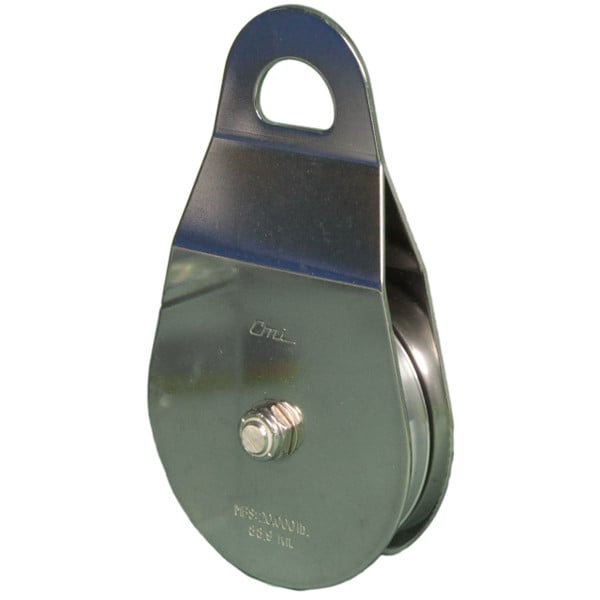

4" Stainless Pulley with Bushing

Stainless steel sideplates, 4" aluminum sheave, bushing, and stainless steel axle.

• MBS: 20,000 lbs
• SWL: 4,000 lbs
• Sheave Diameter: 4"
• Max Rope Diameter 5/8"
• Weight: 2 lb 3 oz
• Body material: Stainless
• Sheave Mechanics: Oilite Bronze Bushing
• Sheave Material: Aluminum
• Width: 4.75
• Height: 8.0"
• Depth: 1.03" sideplate to sideplate
